System Operation

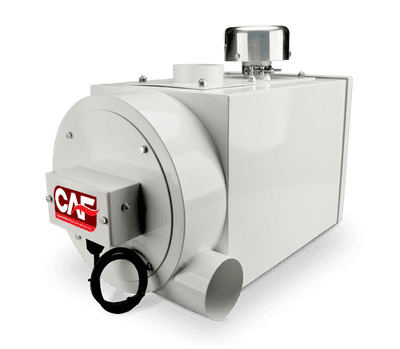

Airflow through the CAF FPS 955 Series system, with a CAF950R filter, is as follows:
1. Contaminated air is drawn into the system through the pre-cleaner. The circular motion of the pre-cleaner separates out larger particulates, dramatically increasing filter life. The second
inlet can be used for recirculation or closed off to increase positive flow, or CFM, of clean air.
2. Air passes through the three-stage primary filter.
-
Stage 1 is a standard PAPER media designed for the heavy dust environment of agricultural, industrial, mining, and off-road conditions. Also, the paper is superior in absorbing liquid aerosol droplets that are present in the air.
-
Stage 2 is respirator-grade ACTIVATED CARBON. The porous nature of this media effectively adsorbs organic vapors, such as diesel and chemical fumes. CAF’s customized, refined activated carbon works on surface area, and our patented design maximizes this principle.
-
Stage 3 is a sub-micron FINAL FILTER that provides protection of up to 99.998 @ 0.3µm while allowing maximum airflow.
3. Air exiting the FPS unit creates a positive flow inside a properly sealed enclosure. This positive flow pushes clean air out of the leaks in the micro-environment side of the system, rather than allowing contaminated air to enter. A differential pressure gage is available to measure the difference in pressure between the inside and outside of the enclosure, which can be correlated to flow rates and filter life.
