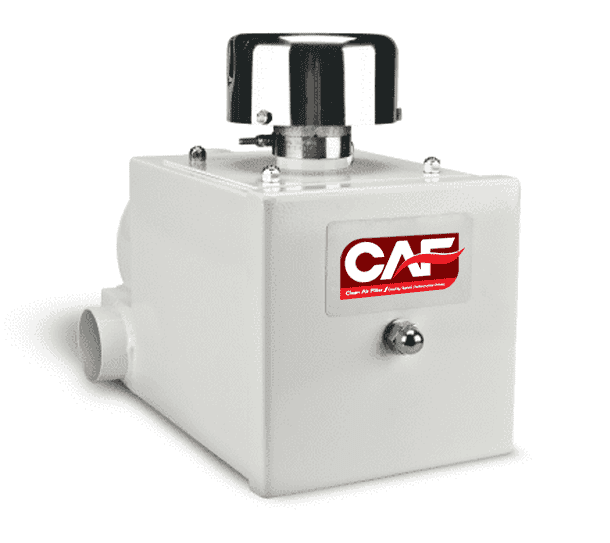

This compact unit is easy to install and requires minimal space. Every FPS 55 Series is factory vapor tested for integrity at .00038 micron, allowing CAF’s patented test procedure for validation. This same procedure, along with particulate testing, can be used to completely characterize environmental enclosure in the field. CAF has proven technology with over 30 years of experience.
Smallest quantifying system available in the market, 10.5” x 10” x 18”
Heavy duty powder coated metal construction
12 volt or 24 volt DC
50 CFM
Centrifugal pre-cleaner
Differential pressure gauge to correlate positive flow
Factory system integrity test
Factory system performance test
Meets EN15695:category 4
Smallest quantifying system available in the market, 10.5” x 10” x 18”
Heavy duty powder coated metal construction
115 volt AC
50 CFM
Pre-cleaner options
Centrifugal pre-cleaner
Differential pressure gauge to correlate positive flow
Factory system integrity test
Factory system performance test
Attaches to FPS55.2
Added unit for filtration with heavy concentrations or specific vapors
12 volt or 24 volt DC
115 volt AC
50 CFM
Factory system integrity test
Factory system performance test
Airflow through the CAF FPS 55 Series system, with a CAF48R or CAF47R filter, is as follows:
1. Contaminated air is drawn into the system through the pre-cleaner. The circular motion of the pre-cleaner separates out larger particulates, dramatically increasing filter life.
2. Air passes through the three-stage primary filter.
Stage 1 is a standard PAPER media designed for the heavy dust environment of agricultural, industrial, mining, and off-road conditions. Also, the paper is superior in absorbing liquid aerosol droplets that are present in the air.
Stage 2 is respirator-grade ACTIVATED CARBON. The porous nature of this media effectively adsorbs organic vapors, such as diesel and chemical fumes. CAF’s customized, refined activated carbon works on surface area, and our patented design maximizes this principle.
Stage 3 is a sub-micron FINAL FILTER that provides protection of up to 99.998 @ 0.3µm while allowing maximum airflow.
3. Air exiting the FPS unit creates a positive flow of clean air inside a properly sealed cab. This positive flow pushes clean air out of the leaks in the micro-environment side of the system, rather than allowing contaminated air to enter. A differential pressure gauge is available to measure the difference in pressure between the inside and outside of the cab, monitoring flow rates and filter life.
FPS Installation Instruction Manual
CAUTION: The enclosure MUST have positive airflow, greater than 18 Cubic Feet per Minute (CFM).
Cab Pressure is Not An Indication of Cab Protection
