FPS55 Accessories"WE CLEAN THE AIR YOU BREATHE" Home

Page 2

NEW!

EN15695

Now manufacturing and testing filters and systems to comply with EN 15695

Page 1

NEW!

FPS55 Series

"WE CLEAN THE AIR YOU BREATHE"

Clean Air Filter supplies the mobile equipment industry, as well as industrial applications such as metal foundries, composting, landfills, etc with particulate/vapor filters as well as custom designed systems to a tested and proven high degree of efficiency with longevity.

CAF 's goal is to provide a sound solution based on patented technology, onsite testing and education to ensure systems serve their purpose efficiently for the end user.

assorted-filters-002

acfilter

cleanairfilter_dsc_7883_07

PRODUCTS

CLEAN AIR FILTER®

specializes in cabin filtration

offering Filters and Filtration/Pressurization Systems.

NOW AVAILABLE EN 15695

TESTING

CLEAN AIR FILTER®

can provide the latest in portable vapor and particulate system testing.

NOW AVAILABLE EN 15695

ABOUT US

CLEAN AIR FILTER®

founded in 1990, is a leader in vapor/particulate filtration

About Us

COMPANY PROFILE

WHAT WE DO

CLEAN AIR FILTER®provides vapor and particulate filtration in a patented, 3-in-1 design.Complies with ISO 3795 burn rate standard, rated as self extinguishing.CLEAN AIR FILTER® offers complete filtration/pressurization systems for agriculture, mining, industrial, and residential applications.CLEAN AIR FILTER® can provide the latest in portable vapor and particulate system testing.Clean Air Filter serves a broad scope of industries and a global customer base. From the home owner seeking a high level of allergen control to the farmer with custom application needs. CAF also serves mining operations, metal foundries and ethanol plants. In addition CAF provides solutions to technical and mechanical operations requiring controlled environments.

Established in 1990

Leaders in vapor and particulate filter design, development, and testing technology

Leader in System design/testing/evaluation

First to develop system level vapor testing/analysis

Teamed with Cal-EPA, NIOSH, MSHA

1990 Cal-EPA

ASAE S525

1994 CAF Test Chamber - Cal-EPA Approved

“RQ” Series

NIOSH Collaboration

MSHA - silica exposure

FPS units – mobile equipment, foundries

back to Home

Products

PRODUCTS

FPS UNITS

Our FPS units are designed to pressurize your environment with clean filtered air.

Application Guide 100811.pdf

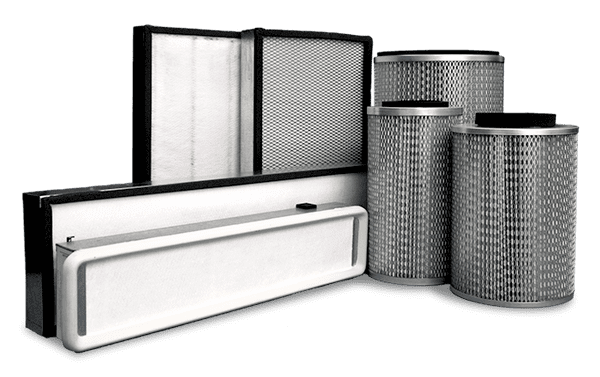

ACTIVATED CARBON FILTERS

The Clean Air Filter provides vapor and particulate filtrations in a 3 in 1 patented design.

3in1

Design

ADDITIONAL PRODUCTS

Special "AMMONIA ONLY" filters are available. This filter is not for use with pesticides, but rather for "AMMONIA ONLY". Clean Air Filter also manufactures various other specialty filters. Please call for more inforation.

CAF's Differential Pressure Gage (DPG) is an instrument to measure positive cab pressure.

back to Home

FOR MORE INFORMATION CALL US TODAY! 712.748.3642

Testing

header-images5
header-images2
header-images1

TESTING AND R&D SERVICES

TESTING FACILITIES AND CONSULTING

CLEAN AIR FILTER®

can provide the latest in portable vapor and particulate system testing.

Testing services available from CAF are:

EN 15695 (New European Standard)

ASAE S525 aerosol and gas / vapor procedures

ASAE modified test at 0.3 microns

Stationary optical particle counter procedures

Organic vapor testing

Stationary aerosol

Vapor cab performance

CO2 cab integrity testing

Ammonia cab integrity testing

Filter/system efficiency determinations

Cab air flow determinations

inlet

total

recirculation

pressure drop evaluations

Specialty testing

CAF is in a unique position to be able to completely characterize enclosed environmental cabs in our laboratory test chamber and in the field. The system performance is a combination of filter perfomance and cab integrity. CAF utilizes these test procedures to determine the overall protection that the cab provides to the worker (cab protection factor)."Worker protection" is a critical factor in the design and operation of enclosed environments. CAF develops / tests / manufactures filters and pressurization systems for mobile equipment to assist in protecting operators from particulates and vapors. The Worker Protection Level, made available by the enclosure, is dependent upon system integrity as well as filter efficiency. It is important to distinguish between:•Stated media efficiency•Stated filter efficiency •Stated pressurizer efficiency •Stated system efficiency CAF recommends testing the complete system.Environmental enclosures may be in use for many years, therefore the cab protection factor may degrade due to aging and inadequate maintenance. Thus a "managed program" including maintenance, cab integrity testing, filter change out schedule, etc., is required to maintain the desired protection level. Both old and new enclosures need to be routinely evaluated for integrity and other critical specifications. As indicated, there are numerous tests, all of which CAF is capable of performing for our customers.

back to Home

CONTACT US

CALL US 712.748.3642

Clean Air Filter

Clean Air Filter, CO.

2203 Highway 59

PO Box 212

Defiance, IA 51527

712.748.3642

712.748.3643 Fax

e-mail caf_cleanairfilter.com

www.cleanairfilter.com

Your name

Your email

Subject

back to Home

Activated Carbon Filters

Page 1

3in1

Design

Page 2

THE CLEAN AIR FILTER

The CLEAN AIR FILTER®features a unique, patented, 3-in-1 design.Complies with ISO 3795 burn rate standard, rated as self extinguishing.Stage 1 is a STANDARD PAPER MEDIA particulate filter. This media absorbs liquid droplets that are present in spray aerosols in addition to filtering out dust.Stage 2 is ACTIVATED CARBON. This media effectively reduces organic vapors before they enter the operator's cab. This is the heart of the "Chemical" side of our filter. Harmful chemical fumes, pollen and other fine dusts are adsorbed in the porous activated carbon.Stage 3 is a FINAL FILTER that allows for maximum airflow while giving excellent pesticide protection.ADDITIONAL PRODUCTSSpecial "AMMONIA ONLY" filters are available. This filter is not for use with pesticides, but rather for "AMMONIA ONLY".CAF's Filtration / Pressurization System (FPS) consists of a 3-stage primary filter, a fan with housing, and a Stage 2 Final Filter. Designed as an add on unit, it is available in 12 or 24 volts.CAF's Differential Pressure Gage (DPG) is an instrument to measure positive cab pressure.BENEFITSThe CLEAN AIR FILTER® (CAF) is very effective in reducing chemical spray (organic) vapors.CAF's filter fits in the existing cab filter space.CAF's design does not diminish or reduce the original dust filter but rather expounds upon it making it a "BETTER OVERALL DUST FILTER". This makes it an excellent choice for combines and windrowers as well as tractors, floaters and high clearance sprayers.CAF's design creates an "INVERTED PYRAMID AIR-FLOW" that:Creates a greater air to carbon surface area, which helps to maximize carbons adsorption ability.Helps to reduce TUNNELING and POCKETING.Farmer tested and approved with "OVERWHELMINGLY POSITIVE" response. LIMITATIONSImproper installation may cause filter dysfunctionInadequate contact of sealing gasket due to loose fit or obstruction may cause filter dysfunctionFilter is designed to augment respirator devices-Use approved respirator when law dictatesFilter will not provide oxygen in an OXYGEN DEFICIENT atmosphereNot for use as protection against FUMIGANTSHigh oil environment may decrease filter efficiencyPROTECTION LEVEL WILL VARY WITH INDIVIDUAL CAB INTEGRITY.Positive cab pressure must be maintained!Positive pressure is not necessarily an indication of cab integrity MAINTENANCEFilter life depends on several factors such as:EXPOSURE (time, wind, humidity, filter location, fan speed, row crop or orchard application)CHEMICAL (chemical structure, volatility, concentration, etc.)REPLACE AFTER ANY OF THE FOLLOWING:ANNUALLYWHEN ODOR, TASTE OR OTHER SYMPTOM FROM CONTAMINANT IS DETECTED.The paper media can be cleaned using a shop vac on the dirty side. DO NOT WASH OR CLEAN WITH WATER.The activated carbon section of the filter CANNOT be cleaned.*CAUTION* USE APPROPRIATE PPE WHEN HANDLING FILTERSDISPOSE OF USED FILTERS IN ACCORDANCE WITH FEDERAL, STATE & LOCAL LAWS/REGULATIONS WARRANTYClean Air Filter Limited 90 Day WarrantyThe Clean Air Filter Company warrants its products to be free from defects in material and workmanship. If one of our products fails because of a manufacturing or workmanship defect, Clean Air Filter will replace the product subject to the following conditions:Warranty Period: The air filter is warranted to be free of defects in material and workmanship for 90 days from the date the product is purchased.What is covered: This limited warranty covers air filters manufactured and sold by Clean Air Filter.What is not covered: This limited warranty DOES NOT COVER · Failures resulting from incorrect application· Damage caused by improper installation, improper or abnormal use, misuse, neglect or accident or unauthorized repair.· Failures resulting from parts not sold or approved by Clean Air Filter.· Damage to parts, fixtures, housings, attachments and accessory items that are not part of the air filter, including check valves and hoses.· Damages as a result of flood, wind, fire, lightning, accidents, corrosive environment, act of God, or any other condition beyond the control of Clean Air Filter.· Incidental, consequential, commercial, punitive, exemplary, or special damages or losses.· Filters that have been cleaned, reinstalled, or both.There are no warranties which extend beyond the description on the face hereof. This limited warranty is VOID if the air filter has been altered or modified in any way including attempted repair without Clean Air Filters authorization.Clean Air Filters responsibilities: If a defect in material or workmanship not caused by an excluded failure is found during the warranty period, Clean Air Filter will provide, at Clean Air Filters choice, new parts or Clean Air Filter approved repair parts or assembled components needed to correct the defect. Clean Air Filter reserves the right to provide a refund in lieu of replacement or repair at Clean Air Filters option. The replacement or repaired product will be sent to you freight prepaid or made available to you for pick up at a local dealer designated by Clean Air Filter. Items replaced under this warranty become the property of Clean Air Filter and shall be returned to Clean Air Filter upon request.Users responsibilities: Report your issue to Clean Air Filter by telephone 1-712-748-3642 or by fax to 1-172-748-3643 immediately. After contacting Clean Air Filter you may be required to deliver or send the air filter to Clean Air Filter properly packaged, freight prepaid. The user is responsible for the cost of shipping and packing.Exclusions and Limitations on Damages and Remedies are as follows:THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, WRITTEN OR ORAL, WHETHER EXPRESSED BY AFFIRMATION, PROMISE, DESCRIPTION, DRAWING, MODEL OR SAMPLE. ANY AND ALL WARRANTIES OTHER THAN THIS ONE, WHETHER EXPRESS OR IMPLIED, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED.CLEAN AIR FILTER IS NOT RESPONSIBLE FOR INCIDENTAL, CONSEQUENTIAL OR COMMERCIAL DAMAGES. REMEDIES UNDER THIS WARRANTY ARE LIMITED TO THE PROVISIONS FOR REPLACEMENT OR REPAIR OF THE WARRANTED PRODUCT AS SPECIFIED HEREIN.This warranty gives you specific legal rights and you may also have other rights that vary from country to country, or state to state.

Application Guide 100811.pdf

back to Products

FPS Systems fps1

FPS950

FPS UNITS

Select a system for more information

FPS55

Do you need to remove volcanic ash?Do you have an older cab with no filtration system?Is your cabs filtration system inadequate?Do you have a control room or office that is contaminated with dust or vapors?Do you want to improve the air quality in your home?Consider a Filtration / Pressurization System (FPS)From Clean Air Filter.Our FPS units are designed to pressurize your environment with clean filtered air.The FPS 55 Series is designed as add-on units for mobile equipment.The FPS 950 Series is designed for offices, control rooms, and residential applications.Clean Air Filter has utilized the latest in technology and research in developing the ultimate in air filtration to create a cleaner healthier environment. There are many models to chose from to suit your needs.

How the System Works

back to Products

FPS Accessories

FPS55 Accessories

FPS-A-55-004

Stage II Housing for Filtration/Pressurization System, 60 Series - includes installation kit (adapting flange, hose, 2 clamps)

FPS-A-55-005

Flange Kit

FPS-A-55-006

3" Inlet Adapter for Stage I Housing

FPS-A-CP006

FPS Centrifugal Pre-cleaner with mounting bracket

FPS-A-DPG

Differential Pressure Gage

FPS-A-MP12007 Links02

FPS-A-MP12007

FPS Motorized Centrifugal Pre-Cleaner, 12 Volt with mounting bracket

FPS-A-MP24007 Links02

FPS-A-MP24007

FPS Motorized Centrifugal Pre-Cleaner, 24 Volt with mounting bracket

click on the part number below for information on that accessory

FPS-A-55-004
FPS-A-55-005
FPS-A-55-006
FPS-A-CP006
FPS-A-DPG
FPS-A-MP12007
FPS-A-MP24007

FPS 55

FPS55

NEW!

This compact unit is easy to install and requires minimal space.

Heavy duty powder coated metal construction

12 or 24 volt DC or 115 volt AC

Filter options

CAF07R for high dust environment

CAF47R provides higher efficiency

Pre-cleaner options

Centrifugal pre-cleaner

Motorized Centrifugal pre-cleaner

Differential pressure gauge to ensure pressurization

Every FPS 55 series pressurizer is factory vapor tested for integrity utilizing CAFs patent

pending test procedure.

back to FPS main

FPS950

FPS950

FPS-950 SeriesThe FPS-950 has proven itself in extreme environments such as overhead cranes in foundries, electronic control rooms in high dust environments of grain handling, and residential applications. This unit is designed for commercial and industrial environments such as mining and manufacturing.Powder coated metal body*Centrifugal pre-cleaner110 voltAdjustable mounting bracketCAF950 3 stage filterSystem Integrity Test at factory to ensure performance FPS-950 G Series Same as above with motorized pre-cleaner 12 or 24 voltThe motorized pre-cleaner is an excellent choice for high dust environments.

back to FPS main

How the FPS Works

cleanairfilter_dsc_7883_07


How the System Works

The operation of the airflow through the FPS system is as follows: 1. Contaminated air is drawn into the system through the centrifugal pre-cleaner. The circular motion of the pre-cleaner separates out larger particles. Options are the standard pre-cleaner or a motorized pre-cleaner. 2. Air passes through the 3 stage primary filter. Stage 1 is a paper media particulate filter designed for the heavy dust environment of agricultural, industrial, mining, and off road conditions. Stage 2 is respirator grade activated carbon. The porous nature of this media effectively absorbs organic vapors such as diesel and chemical fumes. Activated carbon works on surface area and CAF's patented design maximizes this principle. Specialized carbons are available for specific vapors. Stage 3 is a 0.3 micron final filter. With the Stage II housing, an accessory for the FPS55 - Air continues through the S205P filter with a combination of medias for exceptional performance at 0.3 microns. The S205P has an extended service life when used in conjunction with the primary filter. Air exiting the FPS unit creates positive pressure inside a properly sealed cab. This over-pressure pushes clean air out leaks in the positive pressure side of the system, rather than allowing contaminated air to enter.

back to FPS main

new home

Our filtration solutions are designed for any environment, including volcanic ash. This means world wide, whether you're in a corn field, a coal mine, a factory, a tank in a combat zone, a high rise office building, or in the comfort of your own home, Clean Air Filter can "clean the air you breathe."

We Can Develop A Solution For You!

WORLD CLASS AIR FILTRATION SOLUTIONS

Do you have a special need or application?
Clean Air Filter can develop a filtration solution to specifically suit your needs.

Download Application Guide PDF
Application Guide 100811.pdf
